| پارت نامبر |
کد کالا |
قیمت |
وضعیت |
|

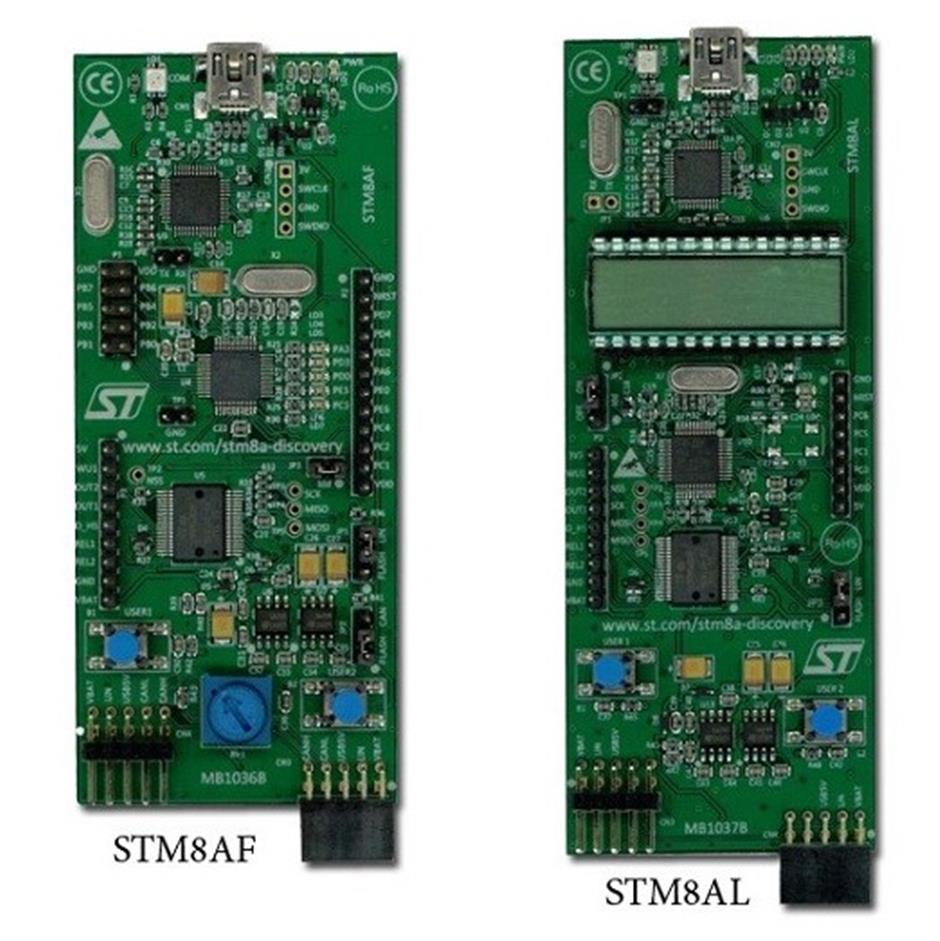

STM8A-DISCOVERY |
135008821 |
20,880,000 ریال |
موجود است
|
به دلیل نوسانات ارزی، ابتدا با فروشگاه قیمت کنونی کالا را هماهنگ نمایید.
تاریخ بهروز رسانی قیمت محصول: ۱۴۰۳/۱/۱۸ ساعت 11:08:13 صبح
- :STM8AF and STM8AL common features
- On-board ST-LINK/V2 included for debugging and programming
- Board power supply: through 5 V USB bus
- Internal dual ST662A step-up converter building the 12 Vdc when powered by USB port
- External application power supply VBAT(up to 14 Vdc)
- 16 MHz HSE XTAL crystal oscillator
- L99PM62GXP power management IC with LIN and high speed CAN with SPI control interface and high-side drivers
- Two push buttons (USER1 and USER2)
- Extension header for L99PM62GXP including relays, high-side outputs and wake-up capabilities
- STM8AF dedicated features:
- STM8AF5288T microcontroller featuring 64 Kbytes Flash, 2 Kbytes data EEPROM, LIN, CAN in an 48-pin package
- Seven LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 5 V power ON
- Five user LEDs LD3 (red) and LD4 to LD7 (green)
- RV1 potentiometer connected to the ADC peripheral
- Extension headers for MCU connectivity (full Port B, free ports pins, RESET)
- STM8AL dedicated features:
- STM8AL3L68T microcontroller featuring 32 Kbytes Flash, 1 Kbytes data EEPROM, LCD in an 48-pin package
- Four LEDs:
- LD1 (red/green) for USB communication
- LD2 (red) for 3.3 V power ON
- 2 user LEDs LD3 (red) and LD4 (green)
- 4-digit alphanumeric LCD display including 4 bars display
- Extension header for MCU connectivity (free ports pins, RESET)
