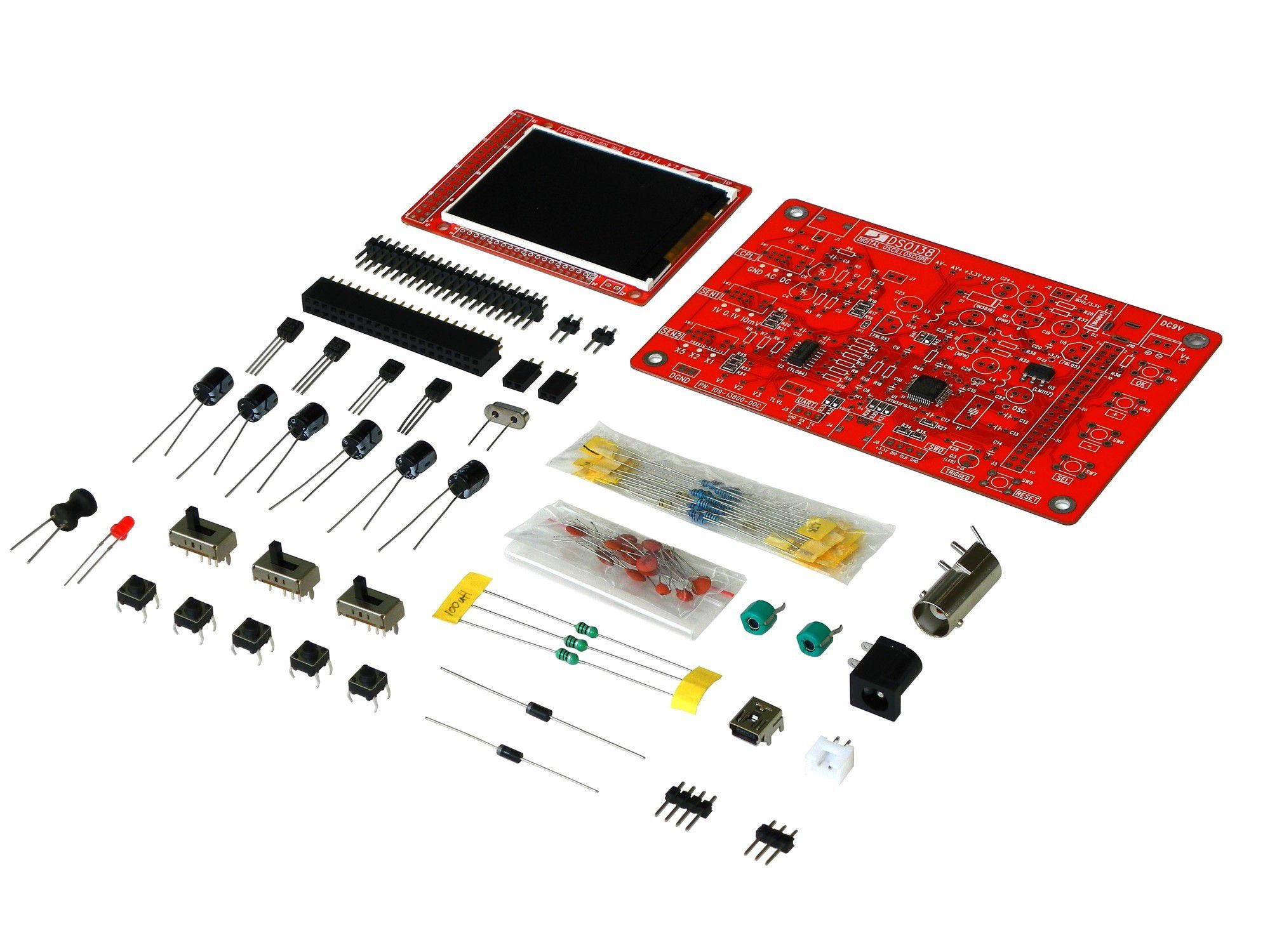

.کیت مونتاژ نشده است و نیاز مند مونتاژ قطعات مطابق با کاتالوگ همراه محصول است
Specification
Vertical
Number of Channel: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 10mV/Div - 5V/Div
Sensitivity error: < 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk
Coupling: DC, AC, GND
Horizontal
Max Real-time Sampling Rate: 1Msps
Timebase: 10us/Div - 500s/Div
Record Length: 1024
Trigger
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling edge
Trigger Position: 1/2 of buffer size fixed
Display

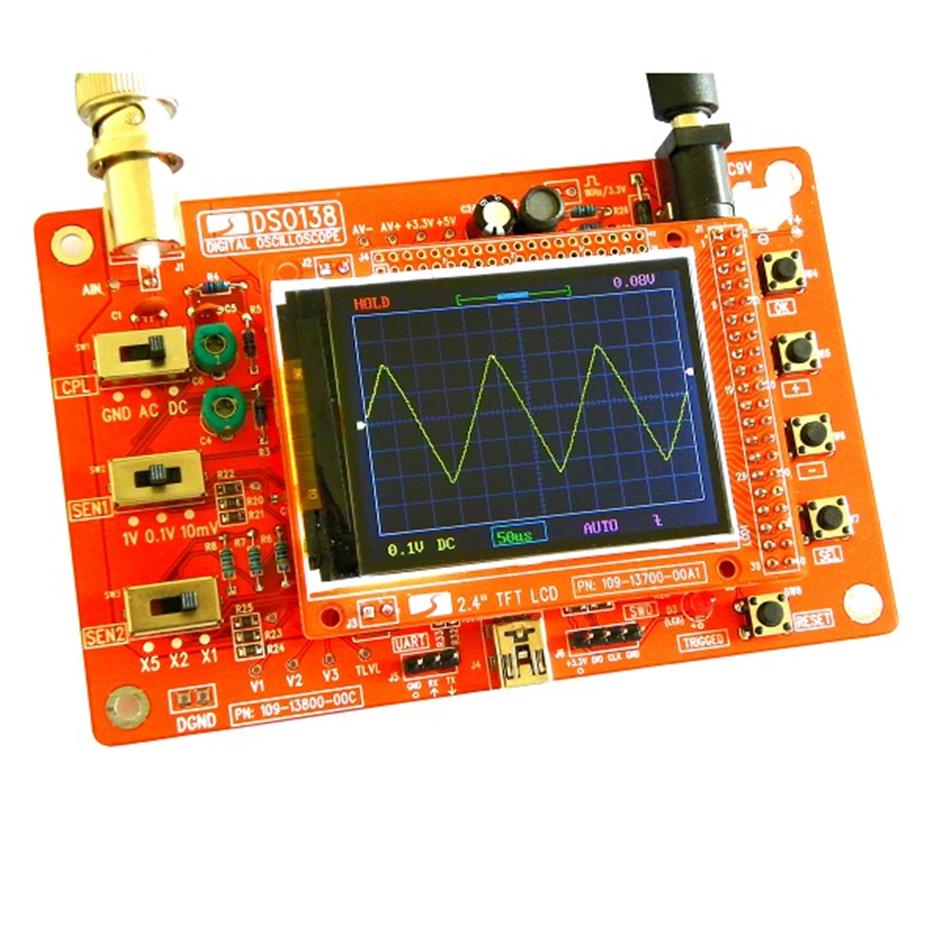

2.4-inch color TFT LCD with 320 x 240 resolution
Power Supply
9V DC (8 - 12V acceptable)
Supply Current: 120mA
Physical
Dimension: 117mm X 76mm X 15mm
Weight: 70 gram (not including cables)
