Smart210 (Tiny210v2) | S5PV210 ARM Cortex-A8 Board
FriendlyARM Smart 210 Stamp Module with 1 GHz Samsung S5PV210 ARM Cortex-A8 processor.

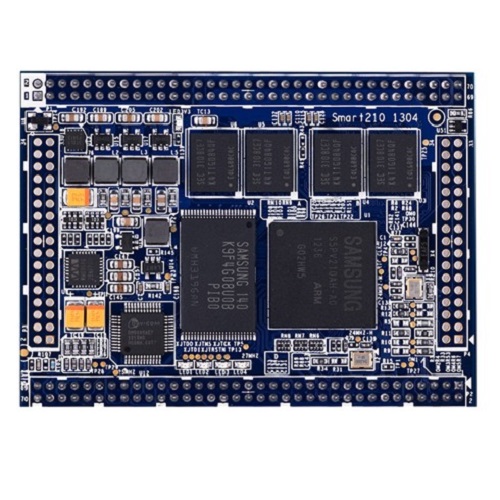

Specification: Stamp Module
- Dimension: 74 x 55 mm
- CPU: 1 GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
- RAM: 512 MB, 32 bit Bus
- Flash: up to 1GB NAND Flash
- Ethernet: 10/100M (DM9000)
- Audio: WM8960 codec
- Serial, SPI, I2C, I2S, SD/MMC, USB, LCD, Camera Interface
- Analog Input and Output
- User Outputs: 4x LEDs
- Expansion headers (2.0 mm)
- Power: 2-6V
- OS Support
- Windows CE 6
- Linux
- Android

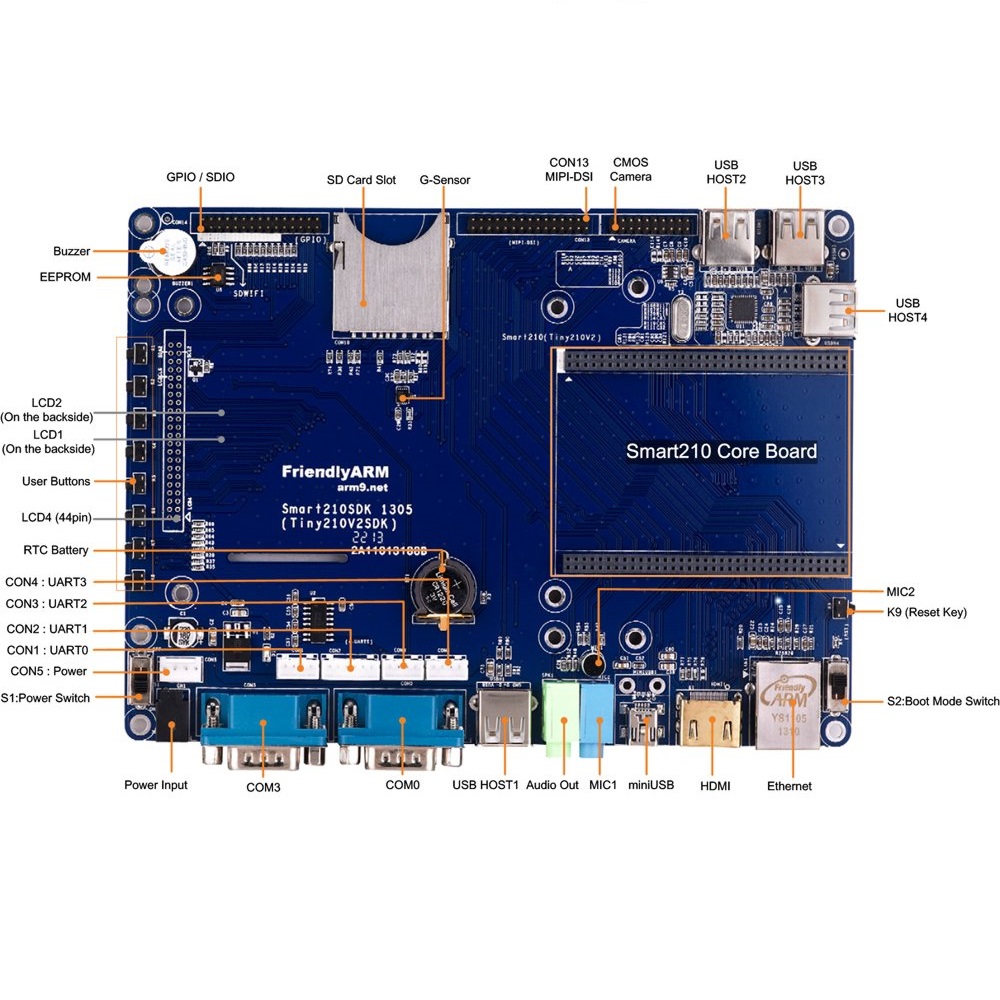

Specification: SDK-Board
- Dimension: 180 x 130 mm
- EEPROM: 256 Byte (I2C)
- Ext. Memory: SD-Card socket
- Serial Ports: DB9 connector (RS232), total: 4x serial port connectors)
- USB: USB-A Host 1.1, miniUSB Slave/OTG 2.0
- mini PCIe
- SIM Card
- Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
- Audio Input: 3.5mm jack + Condenser microphone
- Ethernet: RJ-45 10/100M (DM9000)
- RTC: Real Time Clock with battery
- Beeper: PWM buzzer
- Camera: 20 pin (2.0 mm) Camera interface
- TV Input: AV In
- Monitor: HDMI
- LCD: 40 pin FFC, 40 pin FFC and 45 pin FFC connector
- User Inputs: 8x buttons and 1x A/D pot
- Expansion: (2.0 mm)
- Power: regulated 5V
