Dual Extruder with Auto leveling Sensor and Touch Screen Display LCD.

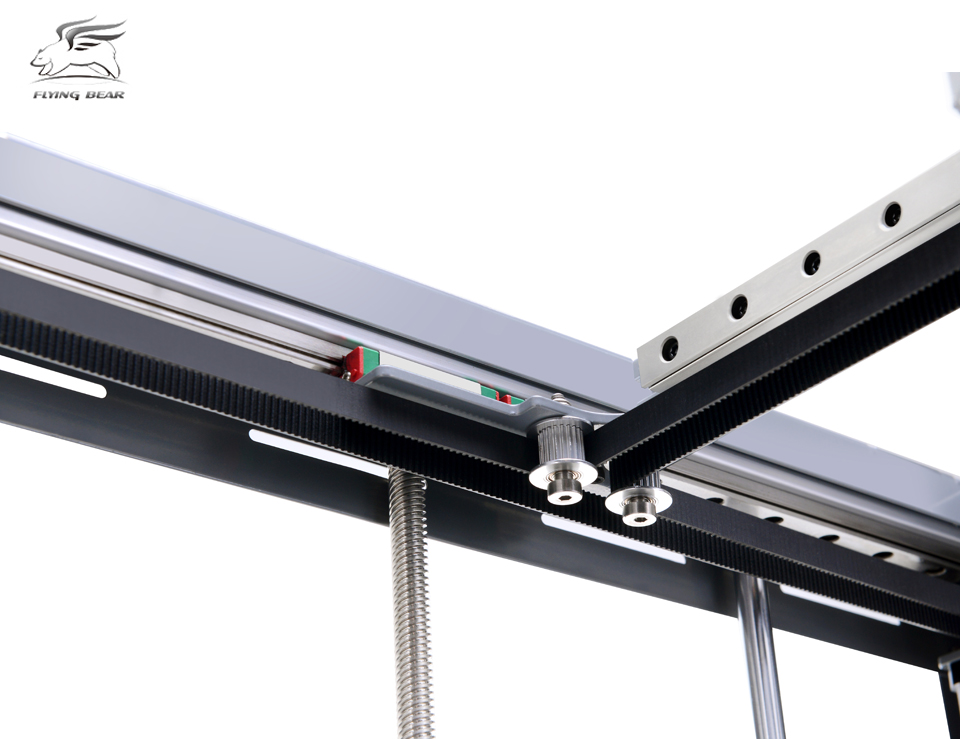

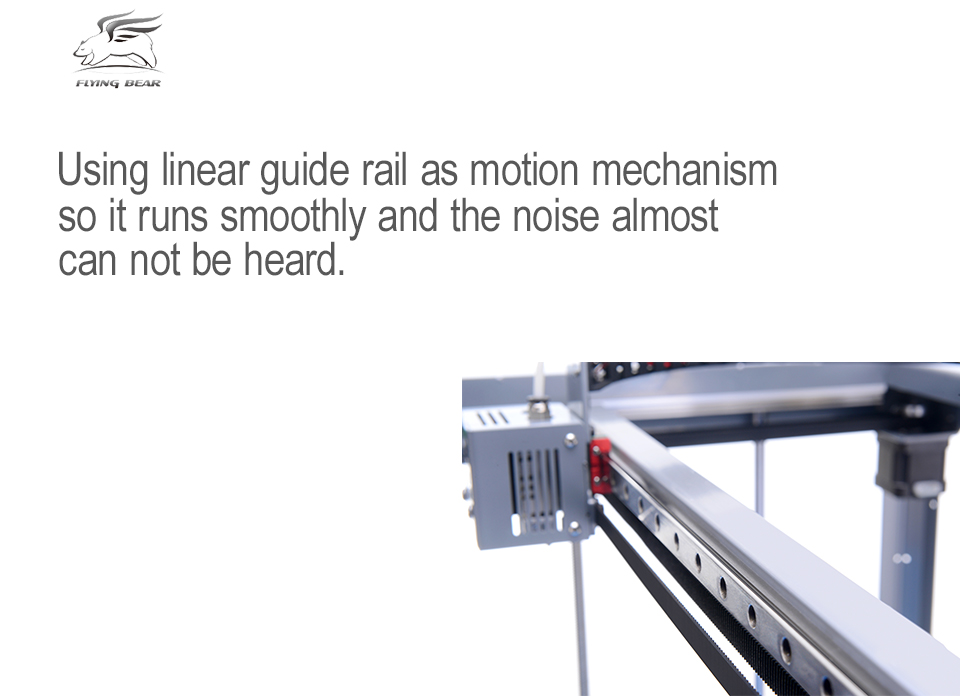

Linear Guide Rails- brings Good stiffness, Minimum friction, High positioning accuracy & rigidity to the machine. It has ability to run smoothly when mounted to less-than-perfect surfaces with almost no noise. Durable, can withstand easily at higher printing speeds.

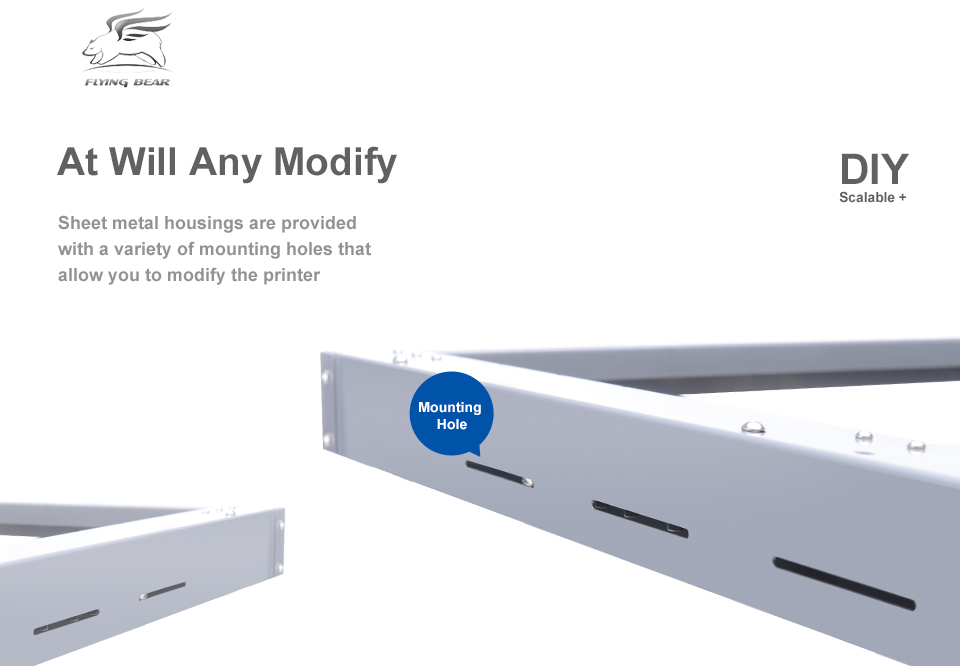

Mods- Sheet metal housings are provided with a variety of mounting holes that allow you to modify the printer.
10 mm wide Synchronous belt provides high strength, excellent flexibility during motion brings high printing accuracy.
Easy to set up the machine.
Dual Z support will stabilize the printer in tall & larger prints. With extruded aluminium less likely to loosen over time, and absorb shake during rapid axis moves
The Mainboard cooling fan can guarantee long uninterruptred work(longevity)
Cable alignments are properly managed for better appearance
TECHNICAL SPECIFICATIONS:
Name |
Flyingbear – Tornado 3D Printer kit |
Print szie |
350*300*300 mm/ 14″ x 12″ x 12″ |
Printer szie |
545*485*485mm |
Layer thickness precision |
0.05-0.3 |
MAX printing speed |
150 mm/s. |
Material type |
PLA, ABS, PETG, Wood, PVA, Flexible Filaments . |
Material specifications |
1.75mm in diameter. |
Positioning accuracy |
Z 0.002mm, XY 0.01mm. |
Nozzle diameter |
0.4mm (customized 0.2mm/0.3mm) |
Recommended extruder temperature |
210°C (the maximum 240°C). |
Hot bed temperature |
60-120°C . |
Extruder number |
1/2. |
Power requirements |
110V/220V, 450W |
Connection |
SD card or USB. |
The file print format |
STL,G-Code. |
Compatibility |
Windows, Mac. |
Control software |
Repetier-host,Cura. |
Control Mainboard |
MKS Gen |
Machine weight |
20kg. |
